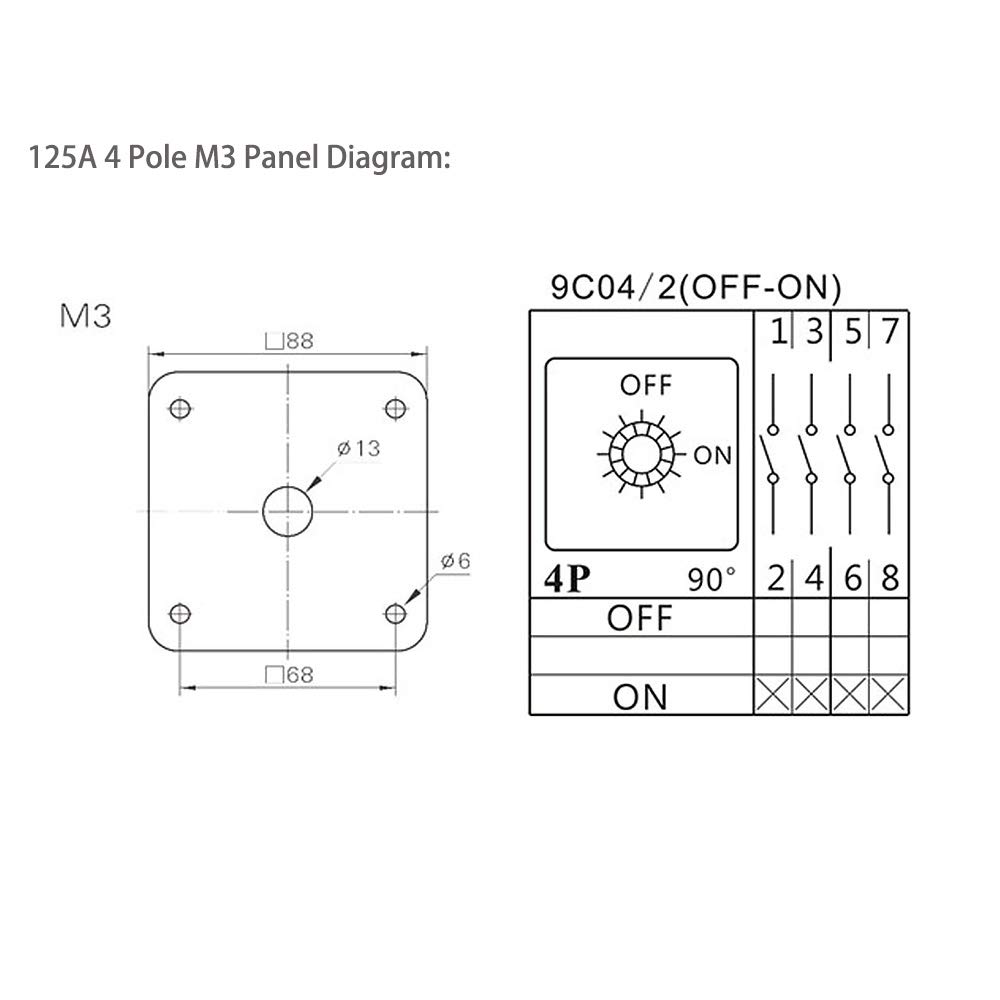

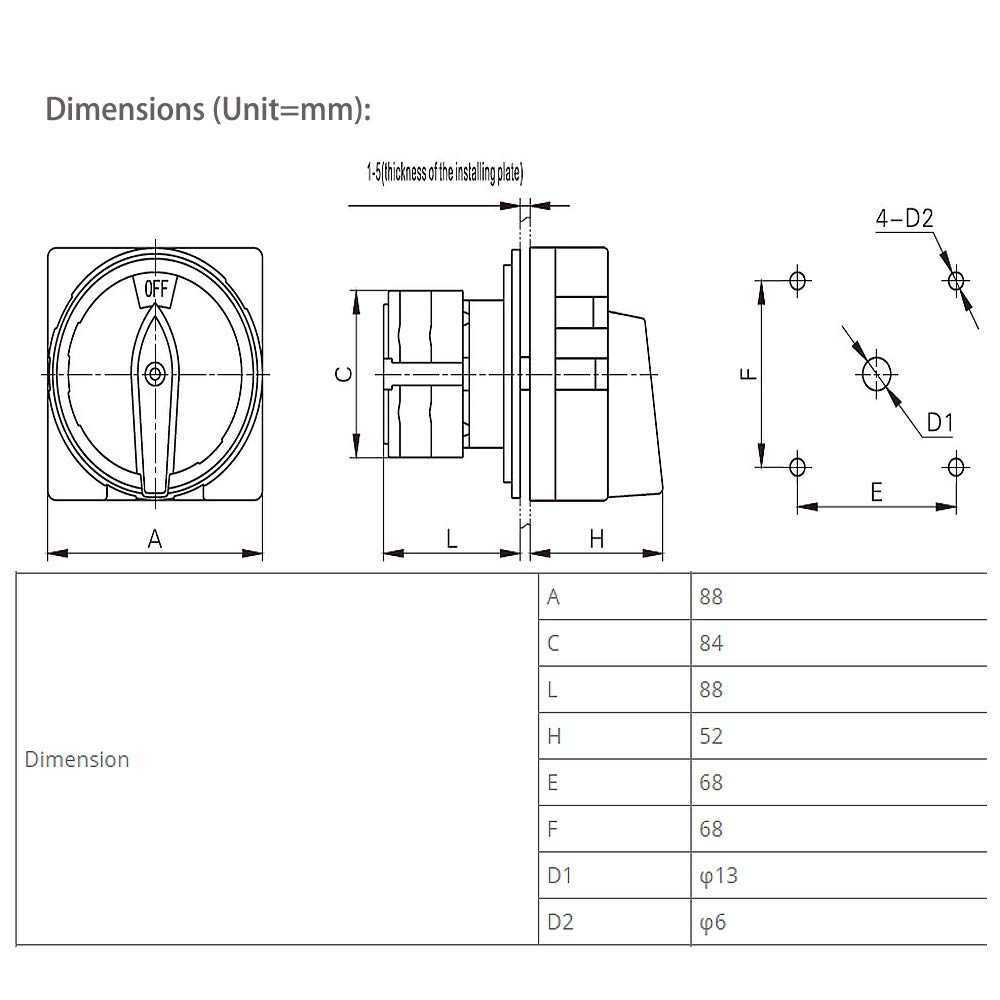

Features: Long service life Easy to operate Flexible to install Basic Information: Rated Voltage: 440VRated Thermal Current: 125APole: 4 PolePosition: 2 Position Wide range of applications: 2 position rotary switch rated current 125A, 4 pole, frequency 50Hz, ideal for power switches, speed switches and induction motors in power lines. 125A 4 Pole M3 Panel Diagram: Tips: The rotary switch is also similar to the traditional incremental encoder. There are two orthogonal output signals, channel A and channel B, which can be directly connected to the encoder processing chip. The switch has a cylindrical appearance. The terminals are produced around the barrel, and these terminals are the extension of the "Jane" static contact piece. The static contact piece is evenly distributed and laid in the tube, in the structure of the shop-layer, and so on, each The layers are insulated from each other. 125A Rotary Switch Dimensions (Unit=mm): 125A Selector Switch Rated Working Current: AC-21 100A AC-22 100A AC-23 15A / / Common Specification: Rated Voltage 440V Pole 4 Pole Position 2 Position Escutcheon Plate M2 Ambient Temperature -25℃-40℃ Altitude ≤2000m Humidity ≤50% 20A 25A 32A 63A 125A 160A Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 5.0 out of 5 stars 3 5.0 out of 5 stars 3 5.0 out of 5 stars 3 5.0 out of 5 stars 3 5.0 out of 5 stars 3 5.0 out of 5 stars 3 Price $59.99$59.99 $61.99$61.99 $65.99$65.99 $73.99$73.99 $101.99$101.99 $104.99$104.99 Rated Power 7.5 kW 11 kW 15 kW 30 kW 45 kW 75 kW
