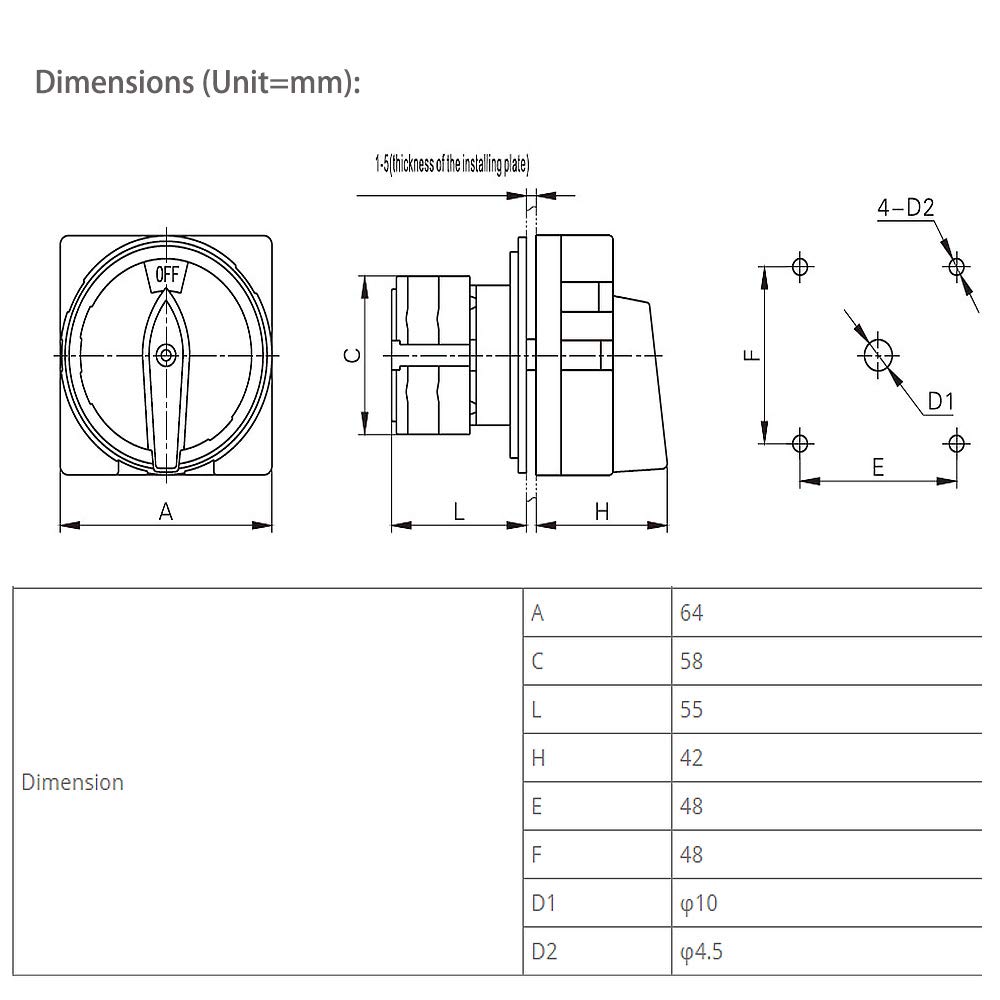

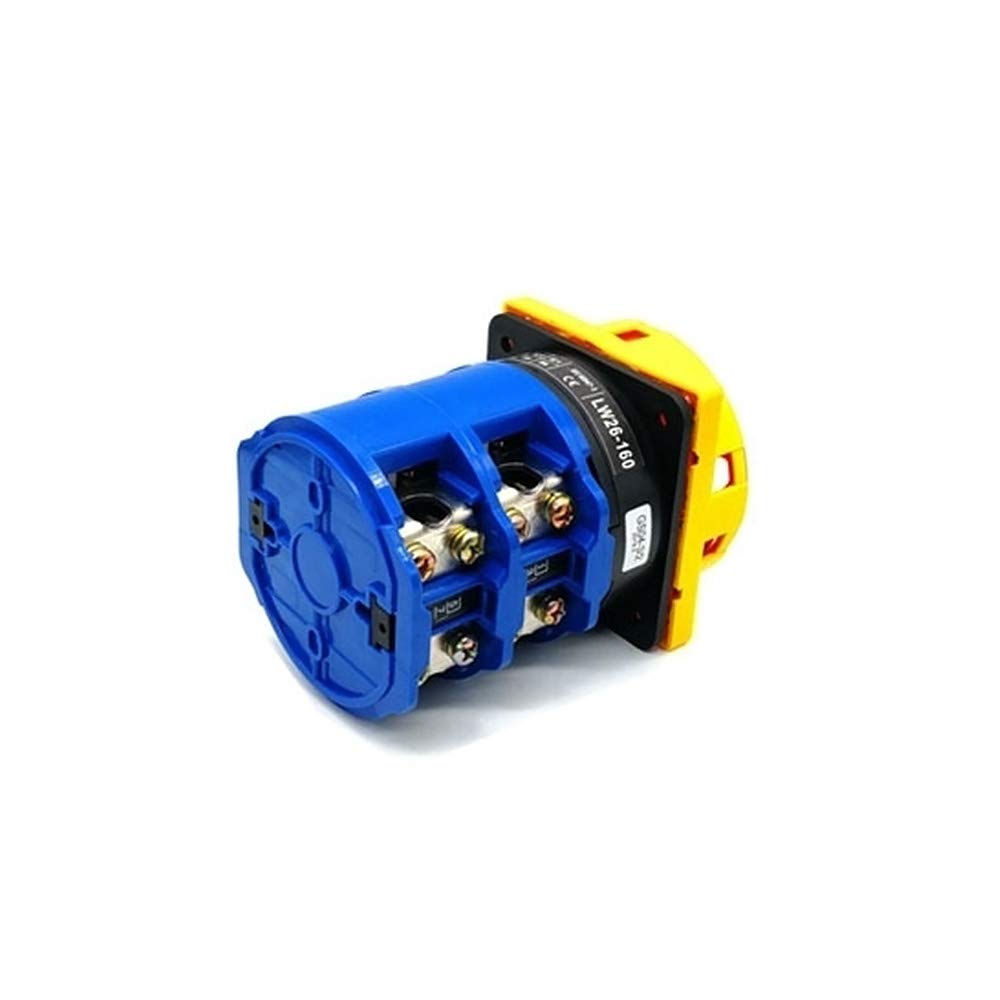

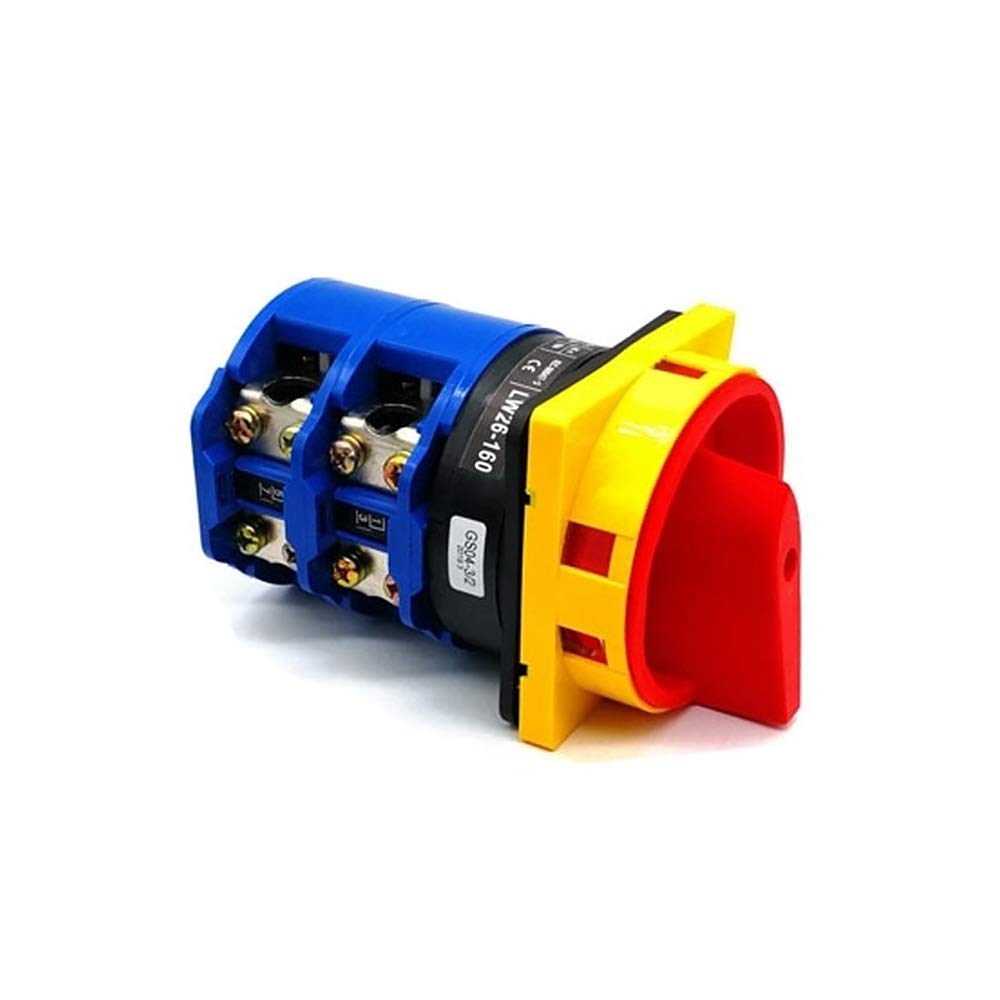

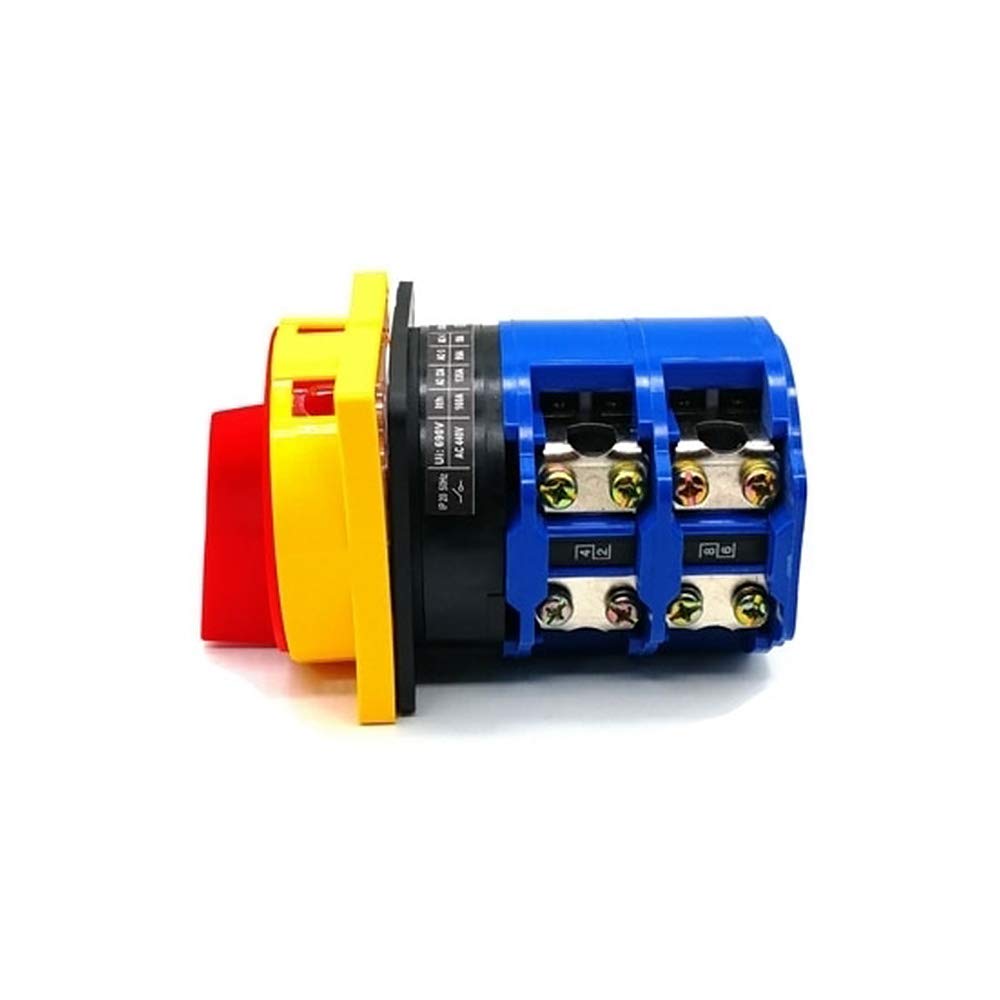

Features: Long service life Easy to operate Flexible to install Basic Information: Rated Voltage: 440VRated Thermal Current: 32APole: 4 PolePosition: 2 Position Wide range of applications: ATO rotary cam switch 2 position 4 Pole ,32A, is suitable for standard low voltage control/load switching and ultra low voltage and electronic applications. 32A 4 Pole M2 Panel Diagram: Tips: Rotary switch wiring method Take the automatic transfer switch as an example to introduce the wiring method of the transfer switch. The automatic transfer switch has four gear positions: manual, automatic, bypass and stop. The wiring mode and wiring object of each gear position are different. Facing the switch, it is divided into four aspects: left and right, and the rear of the switch panel. In the place where the wiring is made, the left and right and the upper and lower sides are first divided into groups, and the wiring is performed by grouping the lines. 32A Rotary Switch Dimensions (Unit=mm) ATO 32A Selector Switch Rated Working Current: AC-21 32A AC-22 32A AC-23 30A / / Rotary Switches Common Specification: Rated Voltage 440V Pole 4 Pole Position 2 Position Escutcheon Plate M2 Ambient Temperature -25℃-40℃ Altitude ≤2000m Humidity ≤50% 20A 25A 32A 63A 125A 160A Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 5.0 out of 5 stars 3 5.0 out of 5 stars 3 5.0 out of 5 stars 3 5.0 out of 5 stars 3 5.0 out of 5 stars 3 5.0 out of 5 stars 3 Price $59.99$59.99 $61.99$61.99 $65.99$65.99 $73.99$73.99 $101.99$101.99 $104.99$104.99 Rated Power 7.5 kW 11 kW 15 kW 30 kW 45 kW 75 kW
